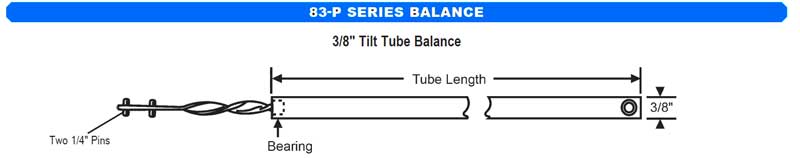

83-P Series 3/8" Plastic Tube Balances

83-P Series tilt window spiral balances. 3/8" tube diameter. Plastic tube window balance. Has 2 pins at end of rod. Similar to our 83 series spiral balance but with a plastic tube. 83-P series balances are available in white or gray tubes.
The appropriate tension tools are our 85-511. Pivot lock shoes and accessories are sold separately.

General Info:
The bearing (or Pawl) colors used on the 83P Series balance are white for sash weighing up to 18 lbs., and yellow for sash weighing 18 to 30 lbs. If your sash weighs between 18 and 30lbs, add HD after the part number.
Example: If ordering a 36" balance for a 23 lb. sash, your part number is 83-P36HD.
Standard tube color is gray. If ordering white, place the letter "W" at the end of the part number.

Ordering Information:
1. Measure plastic tube length.
2. Identify bearing color by looking down into the tube where the rod comes out.
3. Select the part number from the chart below. Please contact us if you don't see your part number listed.

If you have a 9/16" diameter plastic tube balance, use our 85-P series window balances.
